Thermal 6006 Series

Thermal Management Materials (6006 Series)

Thermal Adhesive Transfer Tape

The 6006 Material – a thermally conductive adhesive transfer tape with a thickness of 10 mil.This material is a ceramic filled acrylic adhesive film incorporated onto a protective release liner. With excellent thermal conductivity, mechanical bonding properties, environmental, and electrical insulation along with the ease of use due to the release liner, this product provides an effective thermal interface between a heat sink and electronic components. This thermally conductive adhesive is well suited for many thermal management applications.

Example applications include bonding of IC packages, electronic components, and flex circuits to heat sinks.

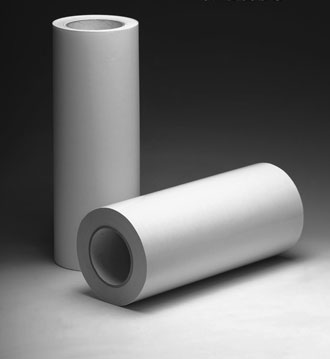

thermal_6006_series

Contact Sales Now To Discuss Your Thermal Material Needs, Call 877-625-7776 x249 Or

Property
Material 6006

RANGE

UNIT

TEST METHOD
Color White Visual
Thickness 0.25 mm
Adhesion 1.5 kg/inch PSTC-1
Holding Power >48 hrs/inch2 @100oC PSTC-7
Weight Loss <1 @204oC/24 hr.
Specific Gravity 1.85 +/-0.1 g/cm3 ASTM D792
Hardness 20 +/-5 Shore A ASTM D2240
Dielectric Breakdown (V) >6 KV/mm ASTM D149
Surface Resistance 2.2 x 1011 Ohm-meter ASTM D257
Temperature – continuous -30 to +120 oC
Thermal Conductivity 0.8 W/m-k ASTM D5470
